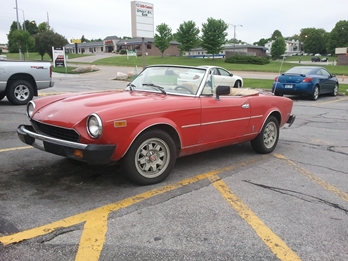

This 1982 Fiat Spider belonged to my husband's father, who was the second owner of the car, having purchased it in 1985. He and the rest of my husband's family enjoyed "Charlotte" until the early 1990s. Since Fiat had left the North American market in 1983, and weren't exactly known for their high-quality vehicles, finding parts was just too hard, so she went into storage until late summer of 2012.

Charlotte is currently my project. The body needs some love. The paint is oxidized. The chrome needs refinished. The leather needs cleaned. But she starts! And with a little love, she will run consistently. She was up and running from April-August 2013 before her age caught up to her and a few more wear-out parts need replaced.

Identification data

Fiat Spider 2000 i.e.
as offered for the year 1982 in North America U.S.

Production/sales period of cars with this particular specs:

1979 - 1983

Model years:

1980-1983



Country of origin:

I Italy





Make:

Fiat

Model:

124 Spider-Spidereuropa-Rally


1967-1985

Submodel:

124 Spider 3a serie (CS)


1972-1983

Optional equipment:


EEC segmentation:

S (sport cars)

Class:

sports car

Body style:

convertible

Doors:

2

Traction:

RWD (rear-wheel drive)


Dimensions & capacities

Length:

4140 mm / 163 in

Width:

1613 mm / 63.5 in

Height:

1224 mm / 48.2 in

Wheelbase:

2280 mm / 89.8 in

Front track:

1346 mm / 53 in

Rear track:

1316 mm / 51.8 in

Ground clearance:






Turning circle btw. walls:

10.9 m / 35.8 ft

Turning circle btw. curbs:


Drag coefficient claimed:


Drag coefficient estimated by a-c:

0.45







Weights

Curb weight (without a driver):

1039 kg / 2291 lbs



Gross vehicle weight rating GVWR:

1340 kg / 2954 lbs

Payload:

301 kg / 664 lbs


Sales markets


Markets, where cars with this particular specifications were sold:

North America


U.S.


Related models:

FIAT 124 BERLINA/FAMILIARE

FIAT 124 COUPE





Powertrain

Engine manufacturer:

Fiat

Engine type:

spark-ignition 4-stroke

Fuel type:

petrol (gasoline)

Fuel system:

indirect injection

Charge system:

naturally aspirated

Valves per cylinder:

2



Additional features:

Bosch L-Jetronic





Emission control:

cat







Cylinders alignment:

Line 4

Displacement:

1995 cm3 / 121.8 cui

Bore:

84 mm / 3.31 in

Stroke:

90 mm / 3.54 in

Compression ratio:

8.1 : 1

Power net:

76 kW / 103 PS / 102 hp (SAE net)


/ 5500

Torque:

149 Nm / 110 ft-lb


/ 3000

Power gross:






Fuel capacity:

45 liter / 11.9 U.S. gal / 9.9 imp. gal



Drivetrain

Gearbox:


Transmission type:

manual





Number of gears:

5

Gear ratios (overall):


I

3.612 (14.09)

II

2.045 (7.98)

III

1.357 (5.29)

IV

1 (3.9)

V

0.87 (3.39)

VI

()

VII

()

VIII

()

R

3.244

Speed range


(max speed on gears,


top gear value theor.):

(km/h/mph)

I:

48 / 30

II:

85 / 53

III:

128 / 80

IV:

174 / 108

V:

200 / 124

VI:

/

VII:

/

VIII:

/

1000rpm speed:

(km/h/mph)

I:

8 / 5

II:

14.2 / 8.8

III:

21.4 / 13.3

IV:

29 / 18

V:

33.4 / 20.8

VI:

/

VII:

/

VIII:

/

Torque converter factor:


Final drive ratio std:

3.9


Standard tires:

165 SR 13
